indent Custom modules can be designed by laying out loose pieces of track, sketching with pencil and paper, CAD, Visio, PowerPoint or even using track layout software intended for traditional layouts. The modules provided on this website were first sketched with pencil and paper and then modeled using Rhino 5.0. The process for creating these CAD models is described in detail below - in part as a reminder to me for when I have more designs to share...

indent

Track Centerlines

indent The general path for each railway line is defined using lines and arcs that enter and leave perpendicular to an edge or end of the module. The minimum radius for the centerline of a curve is 4.1875" (consistent with a standard 3" curve). Spiral easements using ellipses or simply a large radius transitioning into a smaller one improve the overall flow and appearance of the finished railway. Combining small and large radii is also a strategy to align tracks without using a short straight. Curved turnouts and shallow crossings are possible, but an angle less than about 30 degrees can be problematic. Join/Concatenate these centerline segments to create continuous curves where possible to streamline the subsequent steps.

indent
Module with track centerlines (white) defined and joined

indent

Rail Slot Outlines

indent The path for the cutter that actually mills the rail groove is a 0.500" offset from the centerline. Modeling a representative rail slot geometry allows intersections at turnouts and crossings to be checked and is critical for shallow turnouts or crossings. This rail slot outline is also helpful when considering locations for segmenting the track and orienting the rail joiner - particularly if notched track ties are planned. Using the track centerlines (white), offset a curve at 0.400" and 0.600" in both directions. Select these offset curves and trim their intersections for a visual representation of the finished rail slot. Group these to easily hide/unhide as needed.

indent
Module with rail slot outlines (khaki) defined, but not joined or segmented

indent

Track Outline

indent Finished track is typically 1-5/8" in width - I've rounded to 1.624 because half is still a three-digit decimal... Using the centerlines, offset a curve at 0.812" in both directions. Select these offset curves and trim the intersections to establish the actual outline of the track prior to segmentation. Presuming that a 1/8" Dia CNC cutter is used to cut the track periphery, fillet interior corners at 5/64" to ensure the cutter is 'driven' through the corner without a pause that can burnish or discolor the edge.

indent
Module with track outlines (blue) defined and filleted, but not segmented

indent

Rail Tie Definition

indent For a more detailed layout, notches representing a division/gap between ties can be modeled. These tie gaps can be cut or laser etched. Defining these centerlines takes some thought to get right and a few more minutes to cut, but the result is well worth it. If undecided, at least lay out the point spacing - which will establish track segmentation in a logical way allowing you to add ties later without reworking your track outlines.

indent Ties are typically spaced at " intervals along the track centerline and perpendicular to it. Turnouts (switches) present a special challenge - one branch having diverging track centerlines (white). Starting at that point of divergence, create an intermediate curve that is equidistant from the rails (e.g. 'tween' curve). Make a copy of your track centerlines (white) and trim them at the rail outline boundaries (khaki). This defines the segments in which ties are spaced. The intermediate curve (pink) splits the difference between the diverging lines and can be spliced into the track centerline segment.

indent
Module with modified track centerline segments (pink and white) defined

indent

indent Measure the length of each track centerline segment and divide into equal increments roughly " apart. At switches where the lines diverge (pink), space at " towards the open end. The result is shown below with points representing tie locations.

indent
Module with tie notch locations (cyan points) defined

indent

Track segmentation

indent At this point, natural divisions for the track in the layout become apparent. Lumber widths are a limiting factor and grain direction matters too. Start with your most complicated track geometry (typically switches and crossings) and define break locations at a 'tie' location just beyond filleted corners (red points).

indent
Proposed track segmentation locations (red points)

indent Break the tie centerlines across these boundaries and then position joint pairs (male/female connectors) at these track boundaries. Split the track boundaries and joint with the joints to create discrete pieces of track.

indent
Track segmentation

indent

Rail Centerlines

indent Rail centerlines (red) are a 0.500" offset from the track centerline (white).

indent
Rail Centerlines defined, but not segmented

indent

Rail Centerline Segmentation

indent The final step involves dividing the rail centerlines into individual track sections. Split the rail centerlines at track boundaries and then extend at each end by 1/4" to ensure the cutter whill travel past the track boundary. These rail centerline segments can be 'tied together' using a 3/16" fillet at one end - just be careful not to cross track joiners! Create lines that are normal to the centerline to define tie centerlines if needed - then trim to a rail outline offset to create an castellated cutter path for the tie grooves (olive).

indent

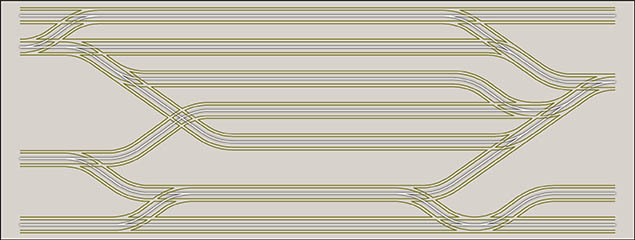

Completed track definition
