Pushing the envelope...

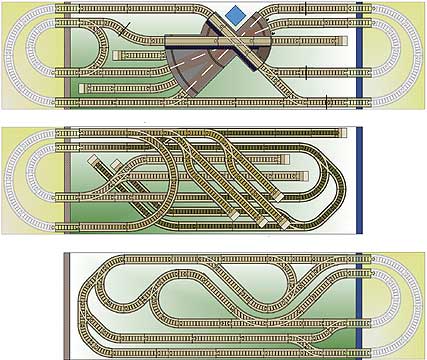

4x20.gif (55 bytes)Shown are just a few of the many advanced segments possible. These require more time and effort to construct. Two specialty ends and a turntable are included. These may also serve as starting points

to develop your own ideas.

4x20.gif (55 bytes)For a complex layout in limited space, note that the two end modules shown can be joined together to create a single 8' layout that is particularly challenging to fully navigate.
